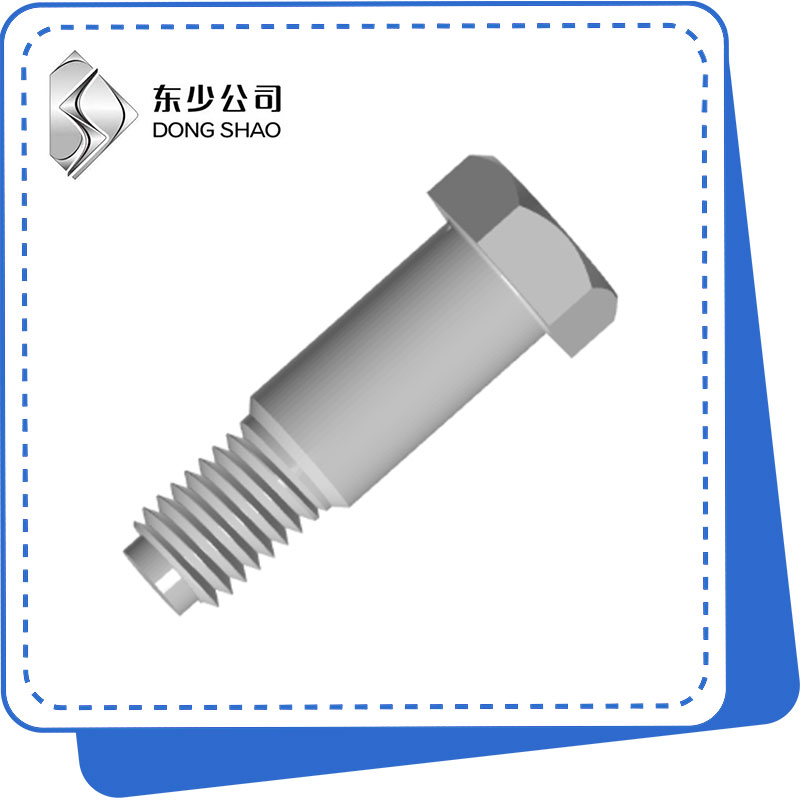

Hexagon Fit Bolts nrog Ntev Threaded Dog Point

DONGSHAO yog ib qho ntawm Tuam Tshoj Hexagon Fit Bolts nrog Ntev Threaded Dog Point tuam ntxhab, cov chaw muag khoom thiab xa tawm.

Xa lus nug

Product Description

Hebei Dongshao Fastener Manufacturing Co., Ltd. yog ib tug paub zoo tus neeg muag khoom thiab chaw tsim tshuaj paus ntawm hexagon haum bolts nrog ntev threaded aub taw tes nyob rau hauv Suav teb.

Nws cov khoom ntawm hexagon haum bolts nrog ntev threaded aub taw tes muaj cov yam ntxwv hauv qab no: Lub zog fastening, tuaj yeem tiv taus lub zog nruj, thiab ntau dua li qhov dav dav hex ntsia liaj qhov rooj; Los tiv thaiv xoob, siv cov txiv ntseej xauv los yog lub nplhaib los tiv thaiv lub nplhaib tsim, los xyuas kom meej tias kev sib txuas yuav tsis xoob vim kev co; Corrosion resistant, siv tau stainless hlau los yog tshwj xeeb nto kho bolts, haum rau siv nyob rau hauv hnyav ib puag ncig; Lub neej ntev, ntev kev pab cuam lub neej, yuav txo tau kev hloov thiab txij nkawm nqi.

Cov hauv qab no yog qee qhov kev siv ntawm hexagon haum bolts nrog ntev threaded aub taw tes: Kev tsim teb, hluav taws xob teb, mechanical field, steel qauv teb, automotive kev lag luam, thiab lwm yam

Khoom Parameter

(mm)	M6	M8	M10	M12	M14	M16	M18	M20	M22	M24	M27	M30	M36	M42	M48
P	1	1.25	1.5	1.75	2	2	2.5	2.5	2.5	3	3	3.5	4	4.5	5
b mas	11.5	14.5	17	19	23	26	28	29	32	35	38	46	50	59	63
b ib min	9.5	12.5	15	17	21	24	26	27	30	33	36	44	48	57	61
ds mas	7	9	11	13	15	17	19	21	23	25	28	32	38	44	50
ds miv	6.964	8.964	10.957	12.957	14.957	16.957	18.948	20.948	22.948	24.948	27.948	31.938	37.938	43.938	49.938
s max	10	13	16	18	21	24	27	30	34	36	41	46	55	65	75
s min	9.78	12.73	15.73	17.73	20.67	23.67	26.67	29.67	33.38	35.38	40	45	53.8	63.8	73.1
k min	3.85	4.85	5.85	6.82	7.82	8.82	9.82	10.78	11.78	12.78	14.65	16.65	19.58	22.58	25.58
k max ua	4.15	5.15	6.15	7.18	8.18	9.18	10.18	11.22	12.22	13.22	15.35	17.35	20.42	23.42	26.42
r min	0.25	0.4	0.4	0.6	0.6	0.6	0.6	0.8	0.8	0.8	1	1	1	1.2	1.6
dp ua	4	5.5	7	8.5	10	12	13	15	17	18	21	23	28	33	38
z	1.5	1.5	2	2	3	3	3	4	4	4	5	5	6	7	8
thiab min	11.05	14.38	17.77	20.03	23.35	26.75	30.14	33.53	37.72	39.98	45.2	50.85	60.79	72.02	82.6
