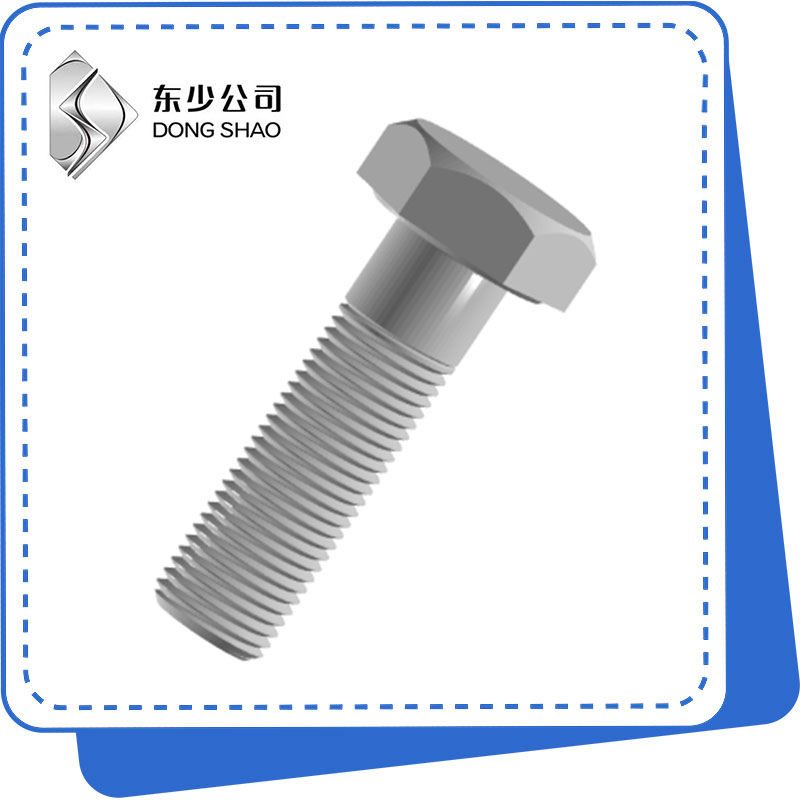

Fine-Pitch Hexagon Lub Taub Hau Bolts

Koj zoo siab tos txais tuaj rau peb lub Hoobkas los yuav cov muag khoom tshiab, tus nqi qis, thiab cov khoom zoo Fine-Pitch Hexagon Head Bolts, DONGSHAO tos ntsoov yuav koom tes nrog koj.

Xa lus nug

Product Description

Hebei Dongshao Fastener Manufacturing Co., Ltd. yog ib tug paub zoo tus neeg muag khoom thiab chaw tsim tshuaj paus ntawm Fine-pitch hexagon taub hau bolts nyob rau hauv Suav teb.

Lub Fine-pitch hexagon taub hau bolts tsim los ntawm lub tuam txhab yog ua los ntawm cov hlau zoo nrog lub zog siab, hardness thiab corrosion kuj, zoo durability thiab ntev kev pab cuam lub neej.

Nws lub caj dab nyias tsim tso cai rau lub ntsia liaj qhov rooj kom nqa tau ntau dua thiab ntim cov nyhuv zoo dua thaum siv, thiab tseem ua rau lub installation yooj yim dua thiab yooj yim dua.

Ib qho yooj yim installation: Lub taub hau hexagonal thiab xov tsim ua rau nws yooj yim rau nruab, thaum nruj nrog cov pa phau ntawv los yog cov cuab yeej siv tshuab, txo tag nrho lub sij hawm installation thiab nqi.

Nrog rau ntau yam kev qhia tshwj xeeb thiab ntau thiab tsawg: Fine-pitch hexagon taub hau bolts muaj nyob rau hauv ntau yam kev qhia tshwj xeeb thiab ntau thiab tsawg kom tau raws li qhov xav tau sib txawv. Qhov no kuj tuaj yeem txhim kho kev ua kom yooj yim dua.Fine-pitch hexagon taub hau bolts tuaj yeem siv rau hauv tsheb, nkoj, dav hlau, kev tsim kho, tshuab thiab lwm yam, nrog rau kev siv dav.

Khoom Parameter

(mm)	M8	M10	M12	M14	M16	M18	M20	M22	M24	M27	M30	M33	M36	M39	M42	M45	M48	M52	M56	M60	M64
P	1	1	1.5	1.5	1.5	1.5	1.5	1.5	2	2	2	2	3	3	3	3	3	4	4	4	4
da max	9.2	11.2	13.7	15.7	17.7	20.2	22.4	24.4	26.4	30.4	33.4	36.4	39.4	42.4	45.6	48.6	52.6	56.6	63	67	71
ds mas	8	10	12	14	16	18	20	22	24	27	30	33	36	39	42	45	48	52	56	60	64
ds miv	7.78	9.78	11.73	13.73	15.73	17.73	19.67	21.67	23.67	26.48	29.48	32.38	35.38	38.38	41.38	44.38	47.38	51.26	55.26	59.26	63.26
thiab min	14.38	17.77	20.03	23.36	26.75	30.14	33.53	37.72	39.98	45.2	50.85	55.37	60.79	66.44	71.3	76.95	82.6	88.25	93.56	99.21	104.86
k max ua	5.45	6.58	7.68	8.98	10.18	11.715	12.715	14.215	15.215	17.35	19.12	21.42	22.92	25.42	26.42	28.42	30.42	33.5	35.5	38.5	40.5
k min	5.15	6.22	7.32	8.62	9.82	11.285	12.285	13.785	14.785	16.65	18.28	20.58	22.08	24.58	25.58	27.58	29.58	32.5	34.5	37.5	39.5
r min	0.4	0.4	0.6	0.6	0.6	0.6	0.8	0.8	0.8	1	1	1	1	1	12	1.2	1.6	1.6	2	2	2
s max	13	16	18	21	24	27	30	34	36	41	46	50	55	60	65	70	75	80	85	90	95
s min	12.73	15.73	17.73	20.67	23.67	26.67	29.67	33.38	35.38	40	45	49	53.8	58.8	63.1	68.1	73.1	78.1	82.8	87.8	92.8
