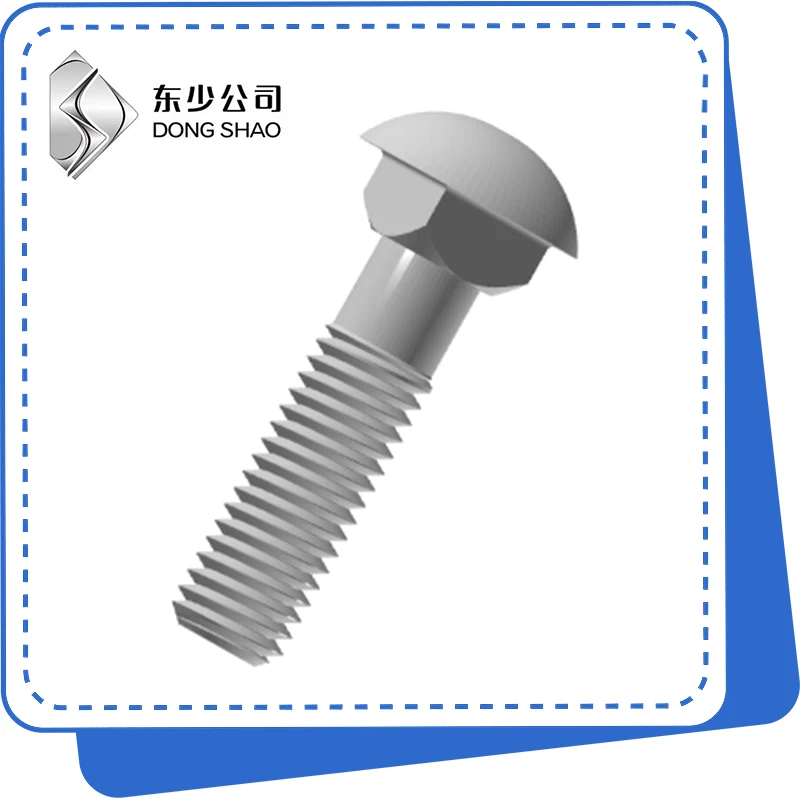

Semi-round Lub taub hau Square Neck Bolts

Raws li ib qho ntawm cov kws tshaj lij cov tuam ntxhab nyob hauv Suav teb, DONGSHAO xav muab koj Lub Taub Hau Ib Nrab Square Neck Bolts. Thiab peb yuav muab cov kev pabcuam zoo tshaj plaws tom qab muag thiab xa khoom raws sijhawm.

Xa lus nug

Product Description

Hebei Dongshao Fastener Manufacturing Co., Ltd. yog tus neeg muag khoom nto moo thiab chaw tsim khoom ntawm Semi-round Lub taub hau Square Neck Bolts nyob rau hauv Suav teb.The Semi-round taub hau square caj dab bolts tau tsim los ntawm lub tuam txhab suav nrog ib nrab puag ncig lub taub hau square caj dab bolts carbon steel ib nrab puag ncig lub taub hau square caj dab bolts stainless hlau ib nrab puag ncig lub taub hau square caj dab bolts; Nws muaj kev ua haujlwm ruaj khov thiab ruaj khov, kev pab lub neej ntev thiab kev teeb tsa ceev; Zoo nkauj tsim ntawm ib nrab puag ncig lub taub hau, haum rau engineering tej yaam num yuav tsum tau zoo tsos; zoo heev nto kho, tiv thaiv oxidation, tiv thaiv hnav, tiv thaiv corrosion, haum rau txhua yam hnyav ib puag ncig.

Semi-round Lub taub hau Square Neck Bolts Parameter

(mm)	M6	M8	M10	M12	M14	M16	M20
P	1	1.25	1.5	1.75	2	2	2.5
dk mas	13.1	17.1	21.3	25.3	29.3	33.6	41.6
dk mav	11.3	15.3	19.16	23.16	27.16	31	39
k 1 max	4.4	5.4	6.4	8.45	9.45	10.45	12.55
k1 nqi	3.6	4.6	5.6	7.55	8.55	9.55	11.45
k max ua	4.08	5.28	6.48	8.9	9.9	10.9	13.1
k min	3.2	4.4	5.6	7.55	8.55	9.55	11.45
s max	6.3	8.36	10.36	12.43	14.43	16.43	20.52
s min	5.84	7.8	9.8	11.76	13.76	15.76	19.22
r min	0.5	0.5	0.5	0.8	0.8	1	1
ds mas	6	8	10	12	14	16	20
ds miv	5.35	7.19	9.03	10.86	12.70	14.70	18.38
